CoaXPress to Analog

Custom interface enabling a modern camera in a legacy system

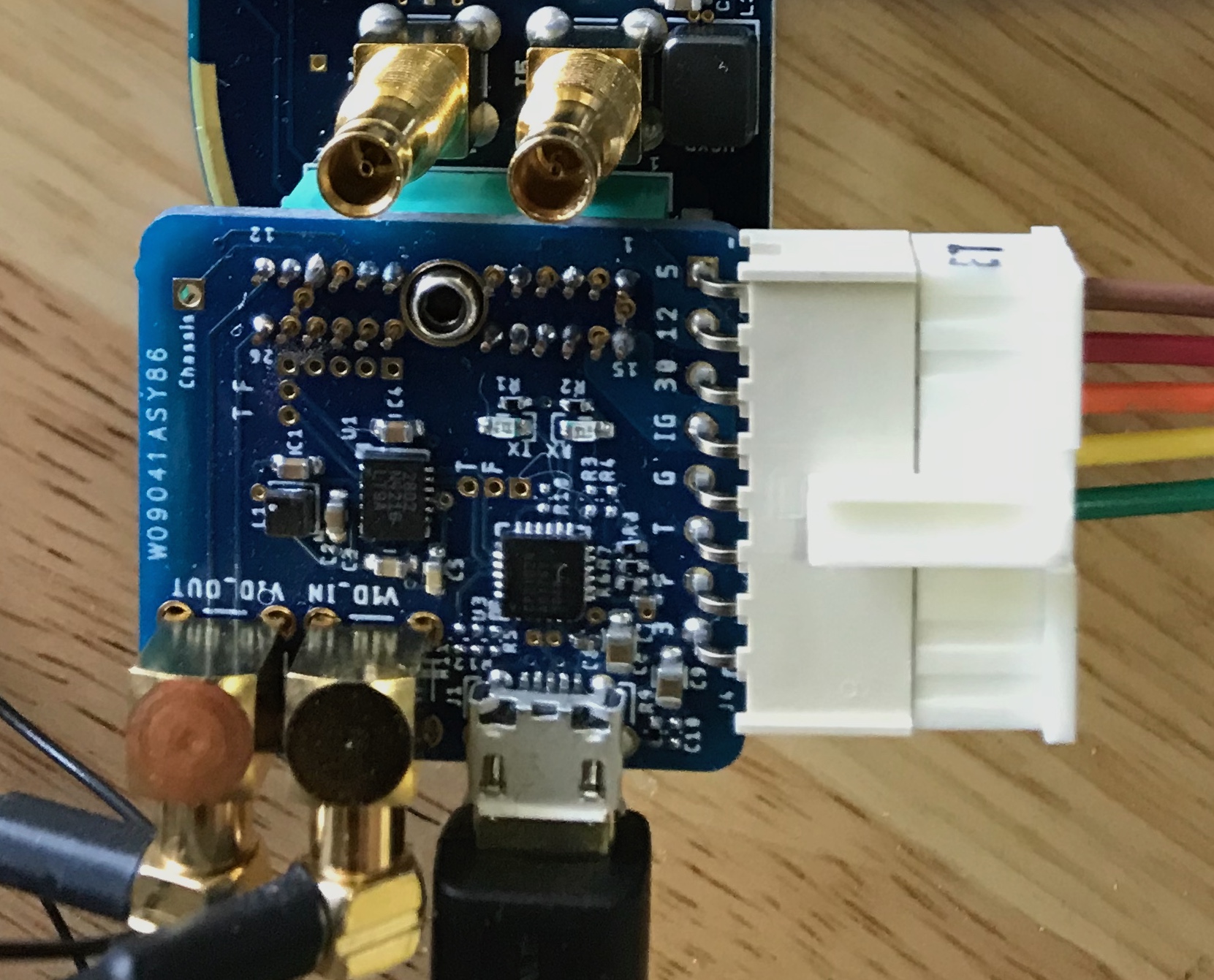

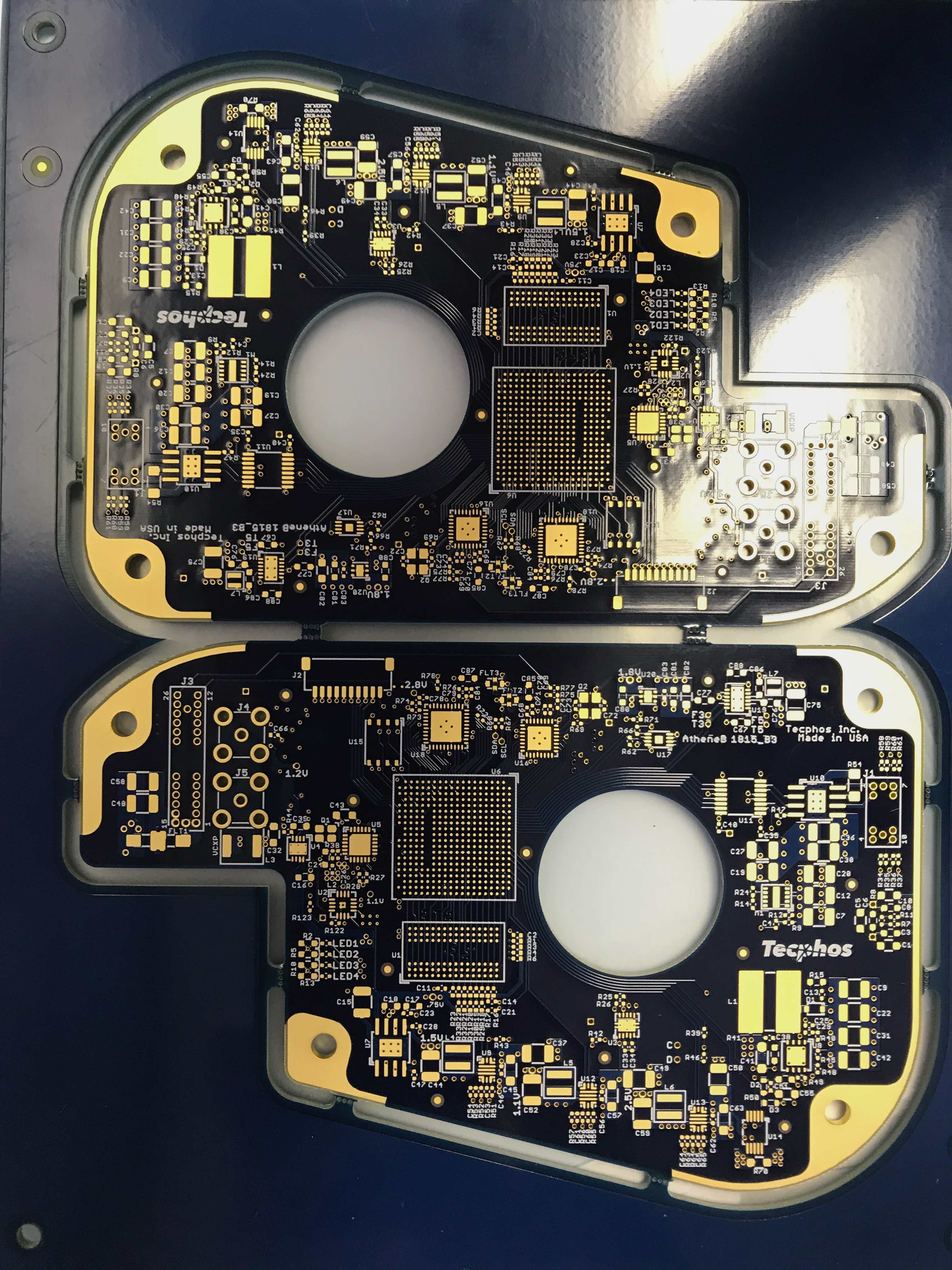

This board connects to a state-of-the-art CoaXPress camera and converts the digital data to an analog signal compatible with an existing imaging system.

This subsystem also provides:

  • A replicated CoaXPress stream output
  • An analog input for compositing onto the analog output stream
  • Isolated focus motor control
  • Autofocus functionality
  • Serial interface for system control and BIT
