ROIC IC Test System

Complete system for testing an characterizing sophisticated high speed Read Out IC

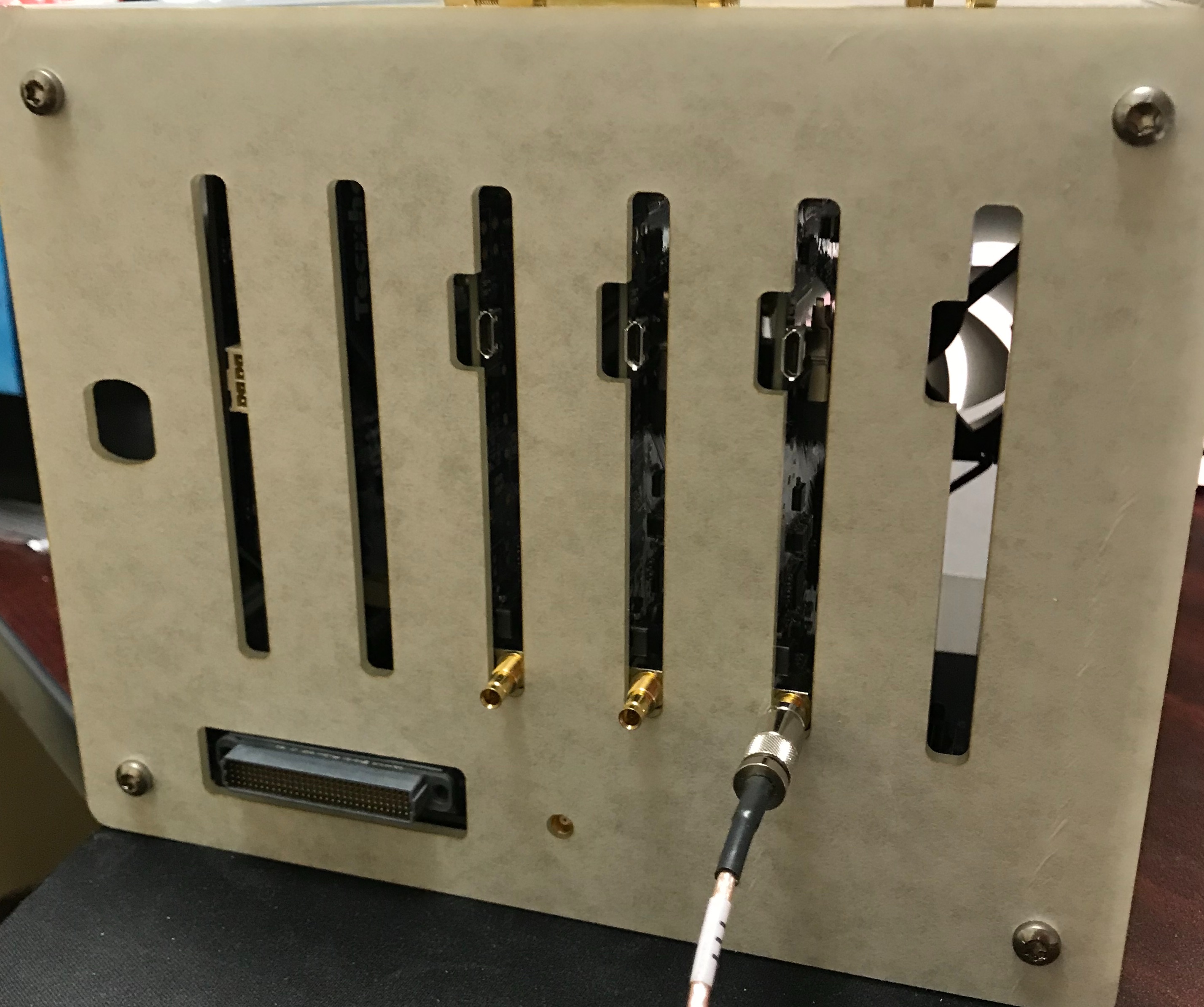

This system is used to test a fully-custom infrared image sensor ROIC.

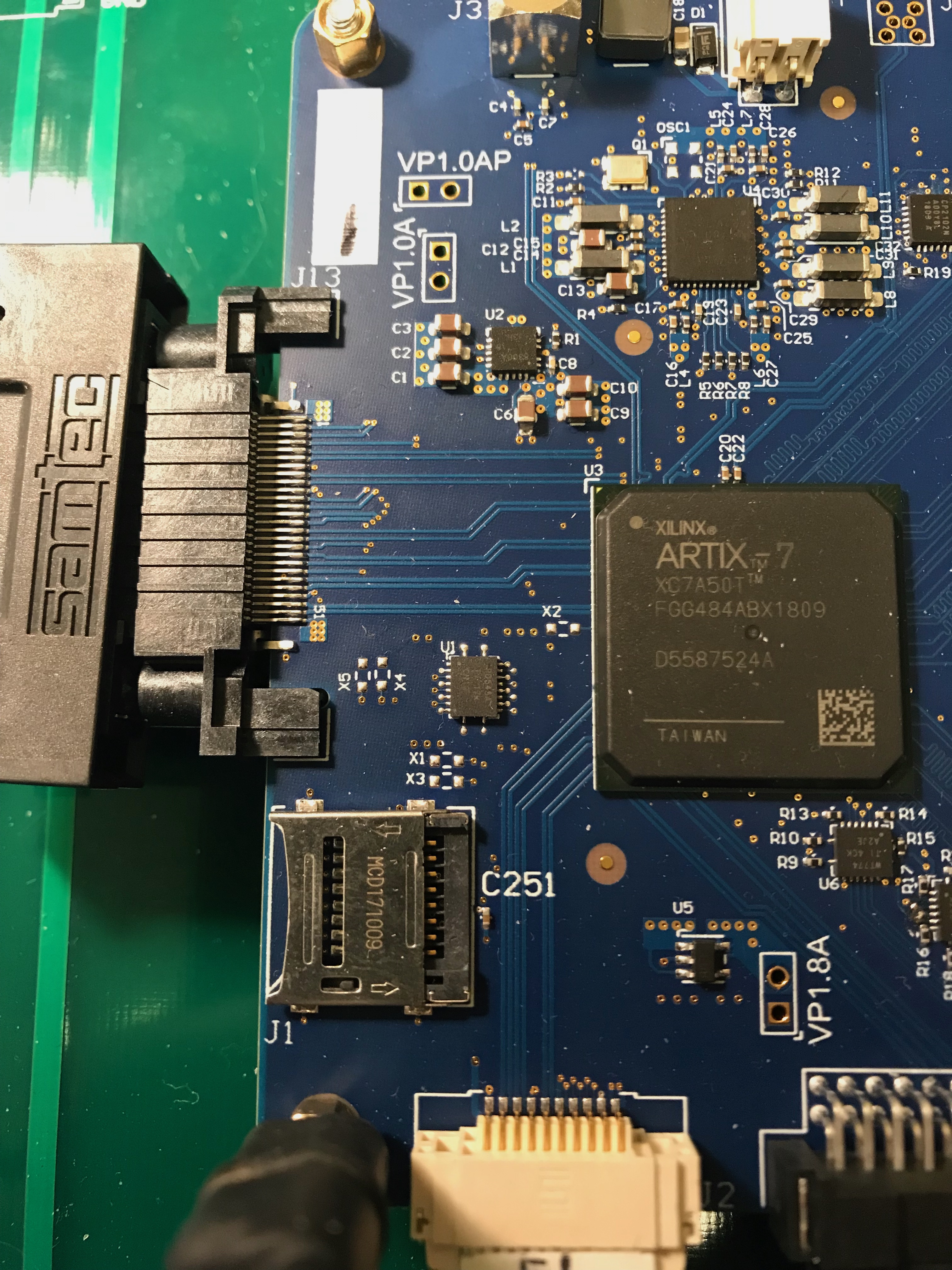

The system interfaces to the ROIC via high-speed 8b/10b SerDes data pipes and LVDS SPI control.

It also interfaces to a test PC via CoaXPress. CoaXPress enables high-speed data retrieval directly into MATLAB for further analysis and characterization.

The PC system can also issue CoaXPress control commands which enable:

  • ROIC Configuration
  • ROIC timing adjustment
  • Power supply and bias supply level adjustments
  • Monitoring supply currents and actual supply levels
